Selection and Tuning of Weber DCOE carburettors
Arriving at the correct carb/venturi size
A very popular modification for Capri owners is the fitment of twin Weber DCOE or DCO/SP carburettors; these not only deliver the goods but also look very good. A good deal of mystique surrounds Webers, specifically Weber jetting and tuning. However Weber DCO series carbs are not as complicated as you might imagine, and whereas there is no substitute for a good rolling road session to tune them, there is much you can do to tune them yourself, by selecting the correct choke sizes and initial jet settings according to a fairly simple set of rules. This should get the engine running to a reasonable standard in preparation for the rolling road.
When selecting Webers, the most commonly asked question is "Should I have 40s or 45s" coupled with "Surely the 45s will give more power". This shows a basic misunderstanding of the construction and principles of operation of the DCO series. It is not the barrel size (40 or 45) which determines the airflow and therefore potential horsepower; it is the size of the main venturi or choke. Selection of the correct main venturi size is the first step in selecting the carburettor.
It is easy to make the assumption that biggest is best when selecting a main venturi size, but the purpose of the main venturi is to increase the vacuum acting on the main jet in order to draw in and effectively atomise the fuel mixture. The smaller the main venturi, the more effective this action is, but a smaller venturi will inhibit flow. A large venturi may give more power right at the top end of the power band, but will give this at the expense of lower RPM tractability. Only a circuit racer will benefit from this sort of compromise, on a road car, driveability is much more important. 95 percent of the time, a road engine is nowhere near its peak power, but is near its peak torque for 75 percent of the time. It is much more important therefore to select the main venturi for best driveability, once the venturi size has been selected, then the appropriate carburettor size can be arrived at.
Here is a small chart showing the available Main Venturi size for Common DCO series carbs
Carburettor Barrel size calculation = Venturi/choke size * 1.25
For example: a two litre engine giving its maximum power at 6000RPM will require a venturi size of 36mm, and therefore an ideal barrel size of 45mm (36 * 1.25). For this application 45 DCOE is the ideal solution, however a 40 DCOE will accommodate a 36mm choke, so if funds are limited and the engine is not going to be tuned further then 40 DCOEs will do the job.
If you have bought your Webers second-
Main Jet and Air Corrector Size Selection
A useful formula for the calculation of main jet size when the main venturi size is known is to multiply the main venturi size by 4. This will give a starting point for the main jet size which should be 'safe', again as a starting point the emulsion tubes can be selected from the table shown below, although for Pinto F9 or F16 will generally be OK. If your carbs are already equipped with these! then that will save you some money. Air corrector jet initial settings should be around 50 higher than the main jet.
Main jet size = Venturi size * 4
Air corrector = Main jet size + 50
Using these formulae, a venturi size of 36mm will require a main jet of 145 and an air corrector of around 190.
Emulsion tube Selection
Below is a table showing suggested emulsion tube type, for a given single cylinder capacity.
Using the above formulae, the ideal settings for a 2000cc Pinto with power peaking at 6000RPM (290 degree cam or above) are as follows
F16 or F2 Emulsion tubes
145 Main jet
190 Air corrector
The 2000cc Pinto in just on the cusp of change for emulsion tube type between F16 and F2, if you already have F16 tubes, use them it is not worth the expense of change, they will just cause the main circuit to start marginally earlier. A 2.1 or 2.2 Pinto should however be using F2s although F16s will do the job acceptably well.

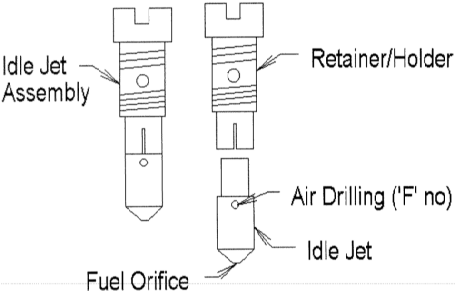

Diagram of Idle Jet Assembly
Idle jets cause a lot of confusion; although their name suggests that they govern the idle mixture, this is incorrect. It is true that the fuel consumed at idle is drawn through the idle jet, but the idle mixture is metered not by these jets, but by the idle volume screws mounted on top of each barrel. The idle jets control the critical off-
Below is a chart showing approximate idle jet sizes for given engine sizes, this assumes one carb barrel per inlet port E.G. two DCOEs.
Idle Jet size
Establishing the correct idle jet for a given engine is not easy but usually an approximation will make the car acceptably driveable. If the progression is weak then the engine will nosedive when moving the accelerator from smaller to larger throttle openings. A certain amount of change (richer/weaker) to progression can be achieved by varying the air jet size on the idle jet; this alters the amount of air that is emulsified with the fuel drawn through the idle jet. If this does not richen .the progression sufficiently then the next jet size up, with the same air bleed should be tried. Below is a small chart showing the most commonly used air size designations, running from weak to rich. Generally speaking start your selection with an F9 air bleed.
Weaker Normal Rich
F3 , F1 , F7 , F5 ,F2-
Setting the Idle and slow running
Rough running and idle is normally down to the idle mixture and balance settings being incorrect, below is a technique to establish a clean idle and progression. Before adjusting the carbs in this manner you must make sure that the following conditions are met.
i) The engine is at normal operating temperature
ii) That the throttle return spring/mechanism is working OK
iii) That the engine has sufficient advance at the idle speed (between 12 and 16 degrees)
iv) That an accurate rev counter is connected.
v) That there are no air leaks or electrical faults.
A reasonable idle speed for a modified engine on Webers is between 900 and 1100 RPM.
If you are adjusting the idle for a set of carbs already fitted then progress to the second stage, if the carbs are being fitted for the first time, screw all of the idle mixture adjustment screws fully home and then out 2.5 turns. If you are using DCO/SP carbs then start at one turn out. Start the engine and let it reach normal operating temperature. This may mean adjusting the idle speed as the engine warms up. Spitting back through the back of the carburettor normally indicates that the mixture is too weak, or the timing is hopelessly retarded. If this happens when the engine is warm and you know that the timing is OK, then the mixture will need trimming richer on that cylinder. Set the idle as near as you can to 900RPM.
Using an airflow meter or carb synchroniser adjust the balance mechanism between the carbs to balance the airflow between them, if the rearmost carb is drawing less air than the front, turn the balance screw in a clockwise direction to correct this. If it is drawing more air, then turn the balance screw anti-
When you are sure that the carbs are drawing the same volume of air, visit each idle mixture screw, turn the screw counter clockwise (richening) in small increments (quarter of a turn), allowing a good 5-
After all the mixture screws have been set, the idle should be fairly even with no discernible 'rocking' of the engine, if the engine is pulsing, spitting or hunting then the mixture screws will need further adjustment. If the engine is rocking or shaking then the balance is out, so revisit with the airflow meter/ carb synchroniser. No amount of adjustment will give a good idle if the throttle spindles are bent or leaking air or the linkages are loose on the spindles! That's all there is to it.
Starting technique for Weber equipped engines (engine cold)
Some Webers have a cold start circuit (choke), others don't, in my experience, it is very easy to flood the engine and wet plugs using the cold start mechanism, as it very crude in operation. The accepted technique for cold starting is as follows:-
Allow the float chambers to fill if you have an electric pump, this should take about 5-
Available Venturi sizes
Below is a chart that will allow the correct selection of main venturi size for engines given the engines capacity and the RPM at which peak power is realistically expected to be achieved, for road engines peak power is usually between 5250 and 6500, depending on the cam selection. After the correct venturi size has been arrived at it is a simple matter to determine whether 40/45 or 48 DCOs are required, take the venturi size and multiply by 1.25, the result is then the ideal barrel size which will accommodate the venturi size selected.

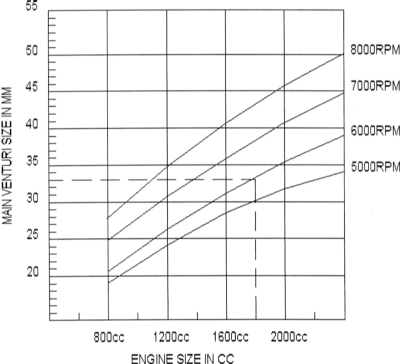

Chart Showing Main Venturi Sizes for Various Engine sizes and RPM ranqes
